- Type
- Restaurant & brewery
- Location
- Electronic City, Bangalore
- Size
- 15,000 sq ft
- Status
- Built 2019

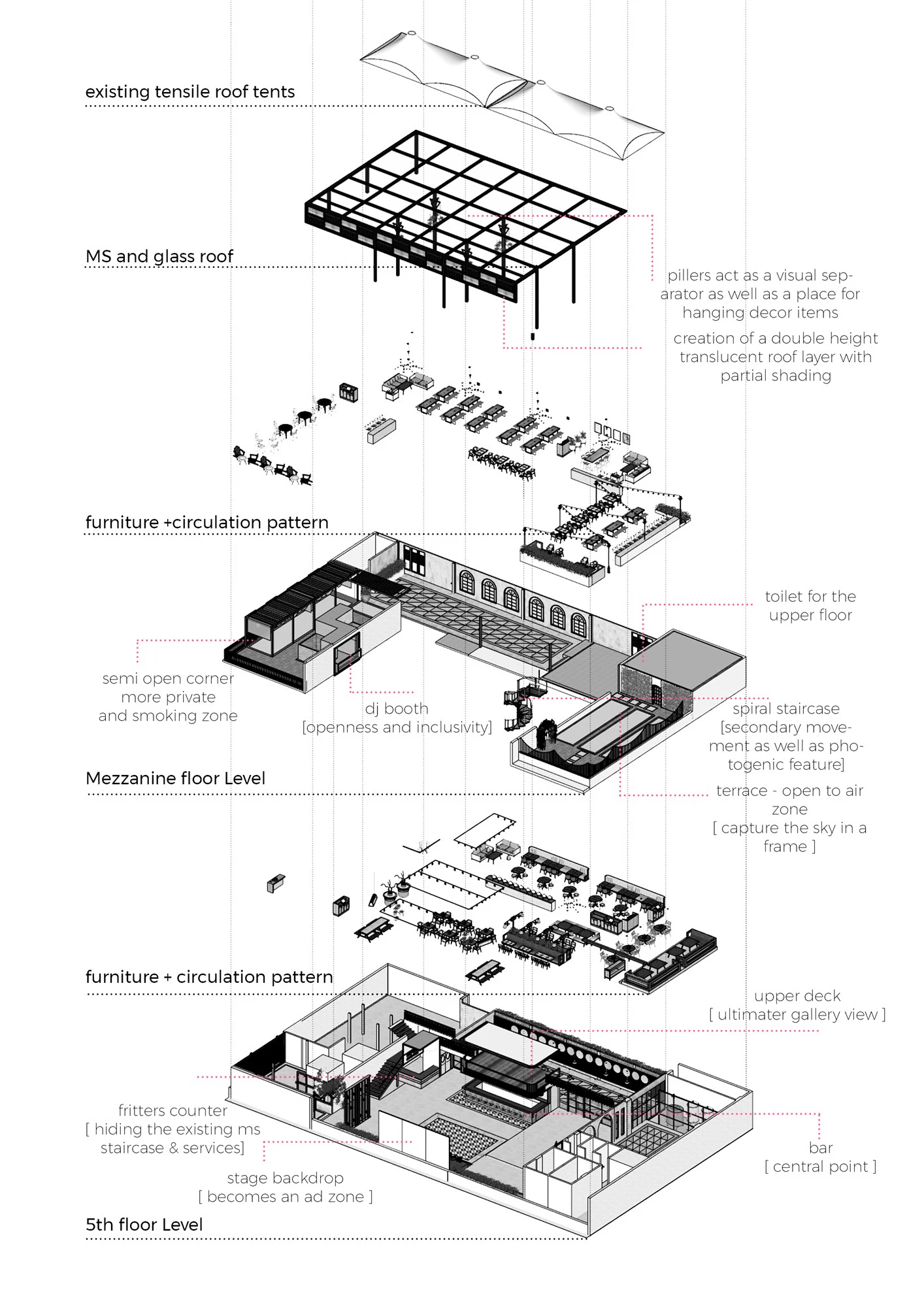

The brewery pulled apart: tensile roof tents on top, MS and glass beneath, furniture and circulation below. The bar is the central point; the fritters counter hides the existing staircase.

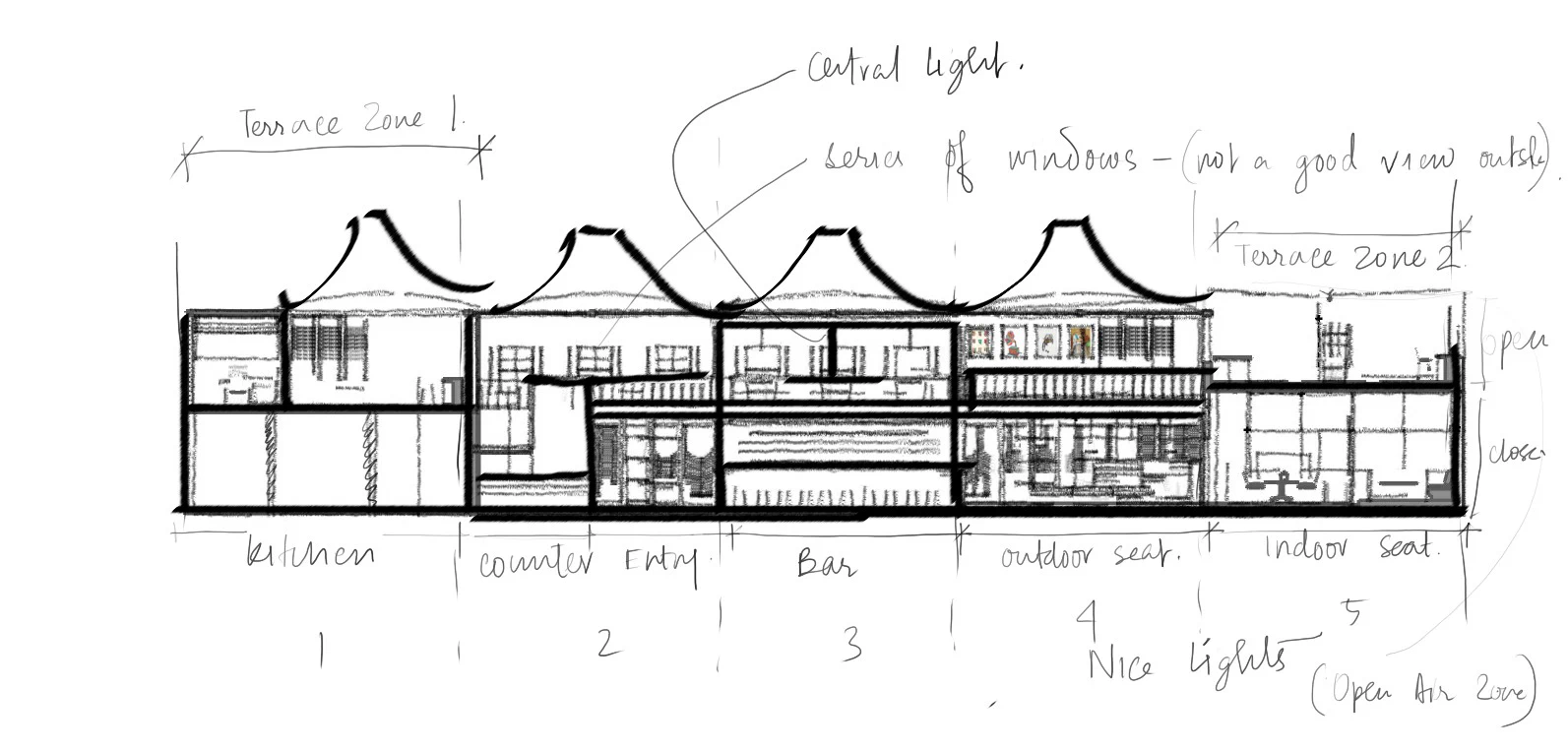

Section through the four kept domes: kitchen, counter, bar, indoor and outdoor seating. The note against the window line is blunt — not a good view outside.

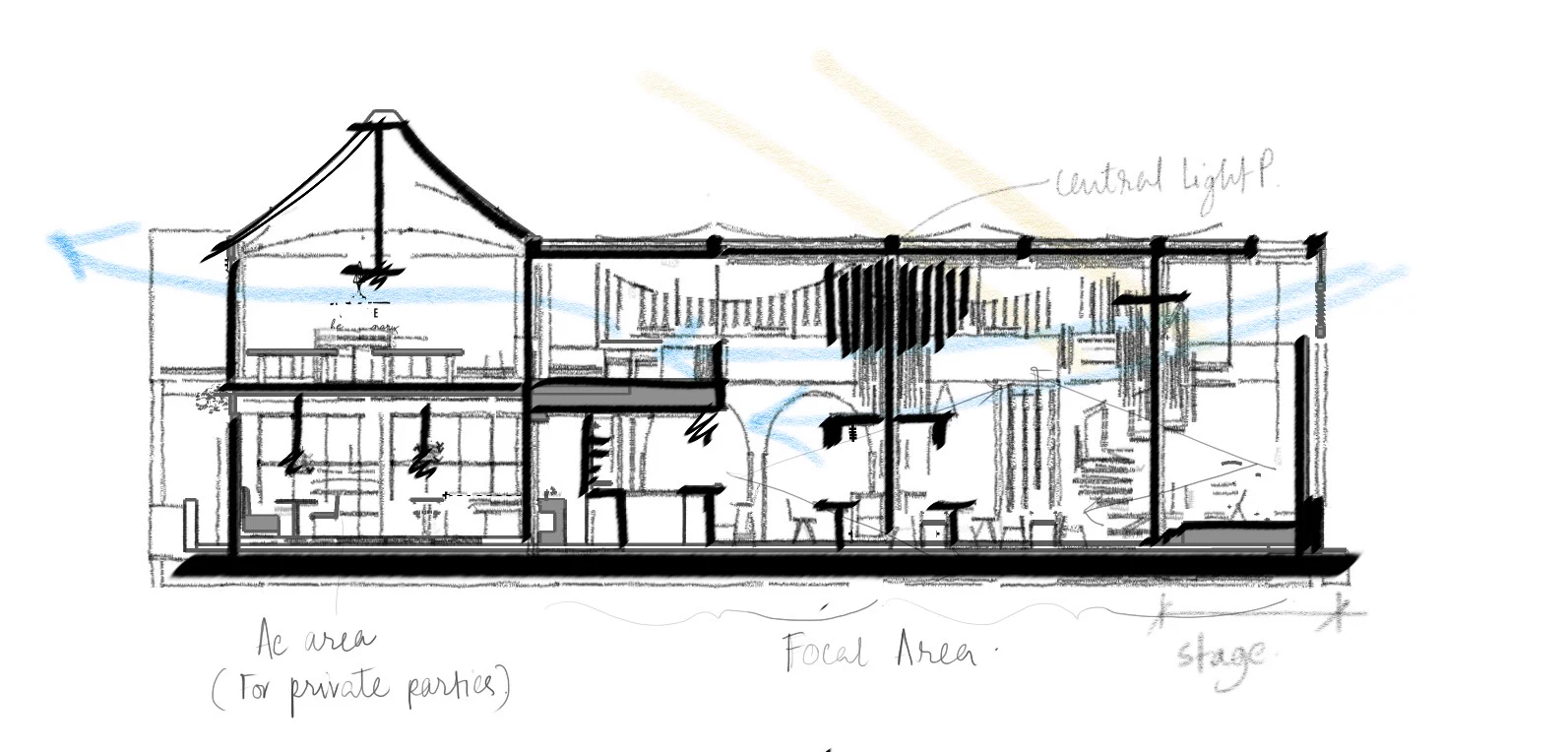

An earlier section, working out air and light: the air-conditioned room for private parties at one end, the focal area in the middle, the stage at the far end.

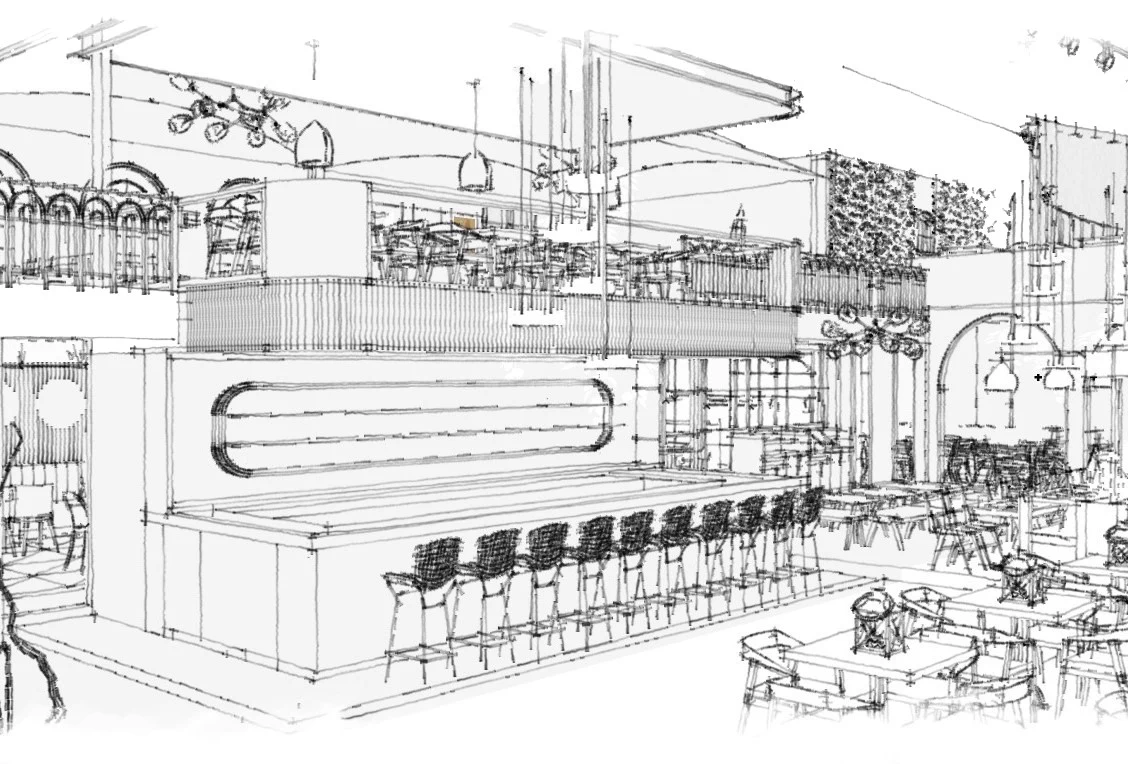

The bar drawn as the centre of the room, with the upper deck reading as a gallery over it.

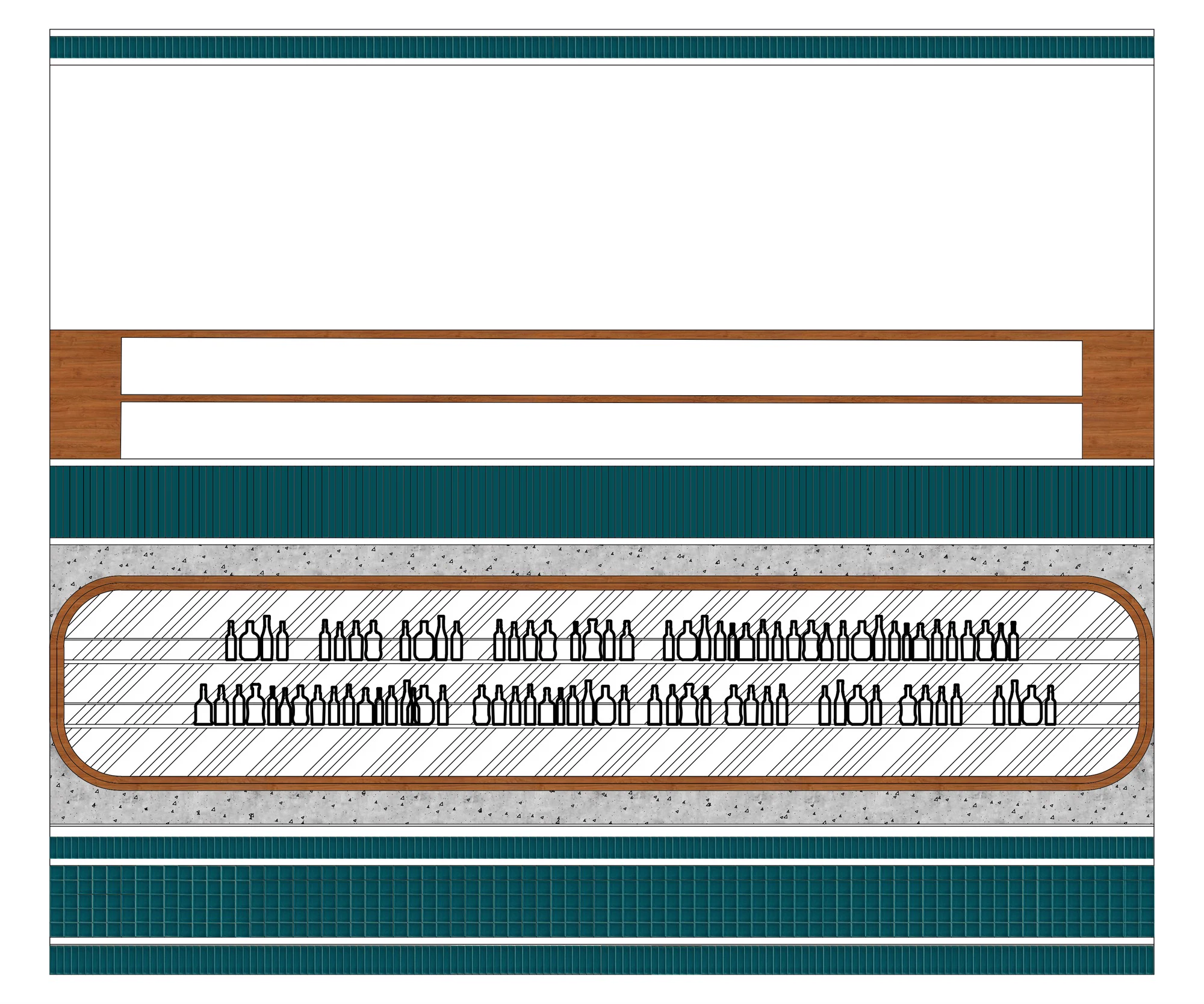

The back bar in elevation: teal banding above and below, and one long rounded timber frame holding two rows of bottles.

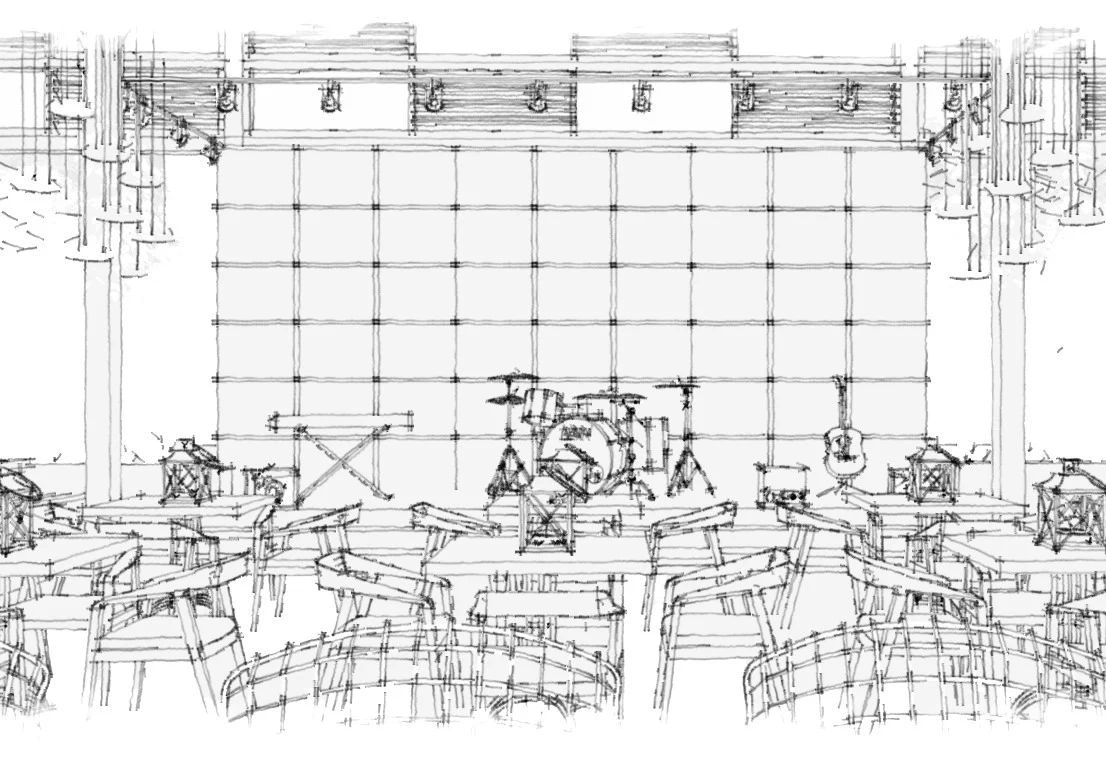

The stage, sketched against the grid that would become its backdrop.

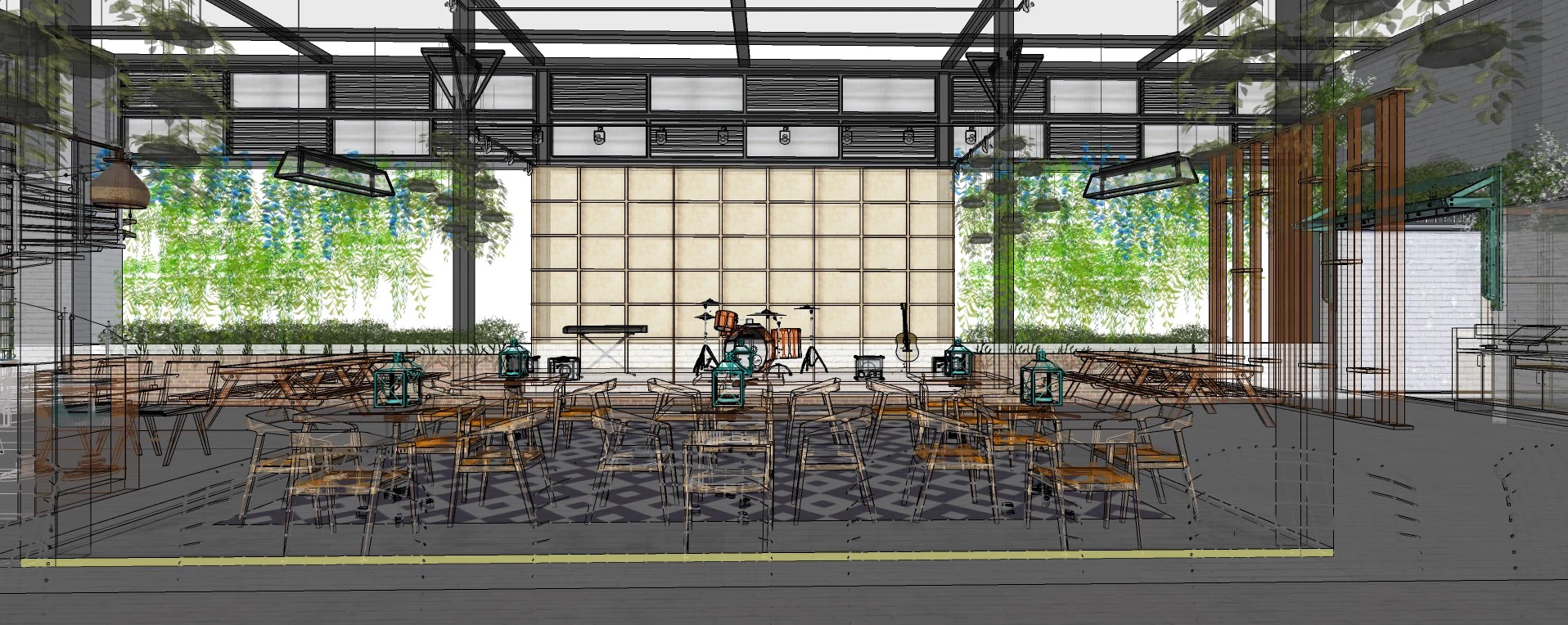

The same stage in colour, facing the main road, with planting cascading either side of the lit grid.

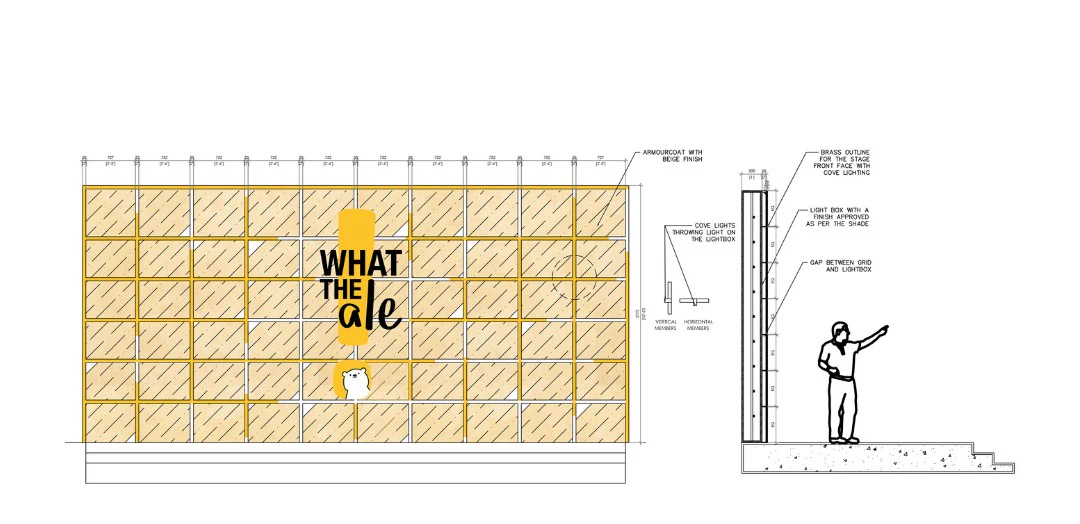

The backdrop drawn to build: an armourcoat grid in beige, cove lights throwing light onto a lightbox behind, and a brass outline to the stage front.

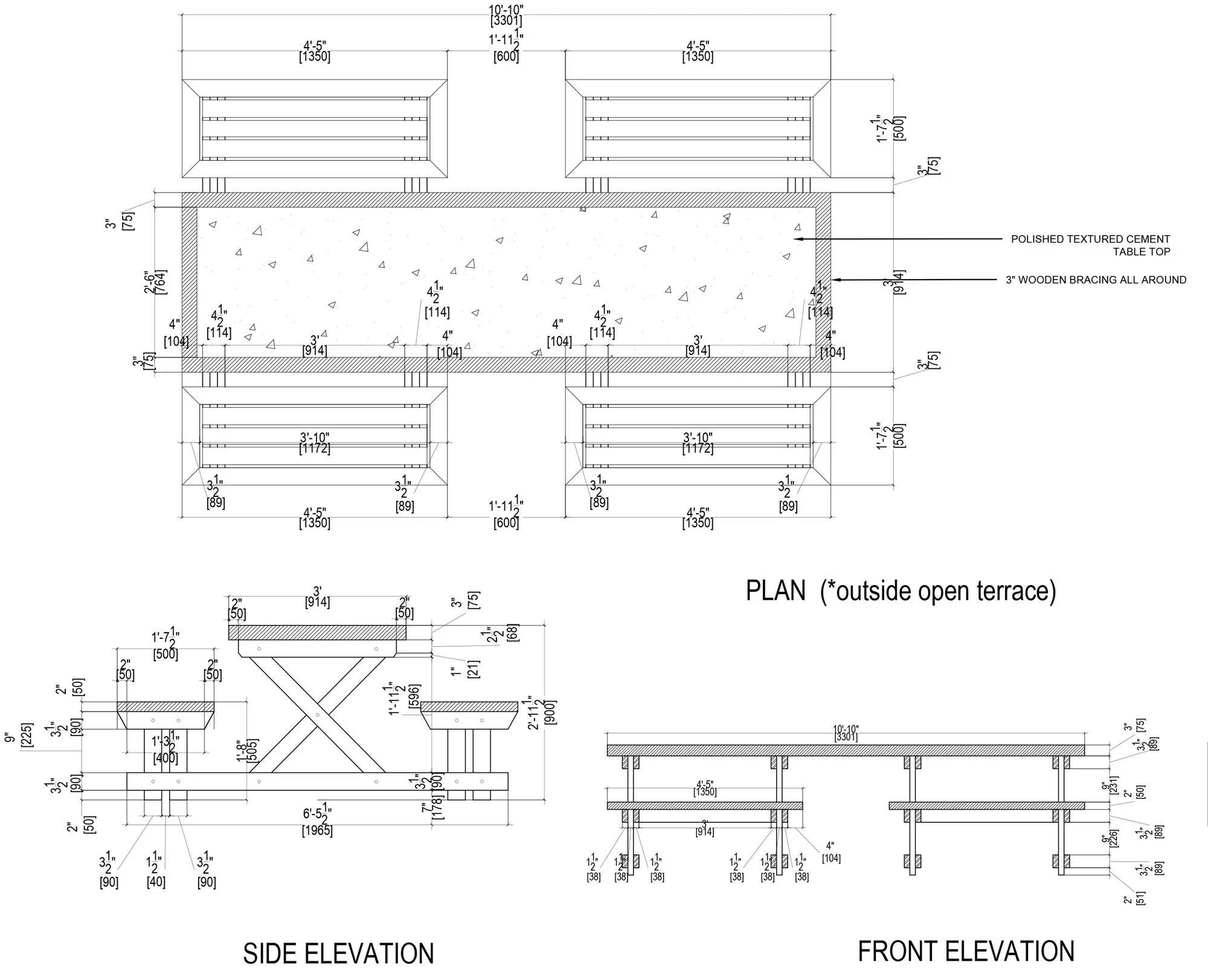

The terrace tables, drawn from scratch: nearly eleven feet long, a polished textured cement top with three-inch wooden bracing all round.

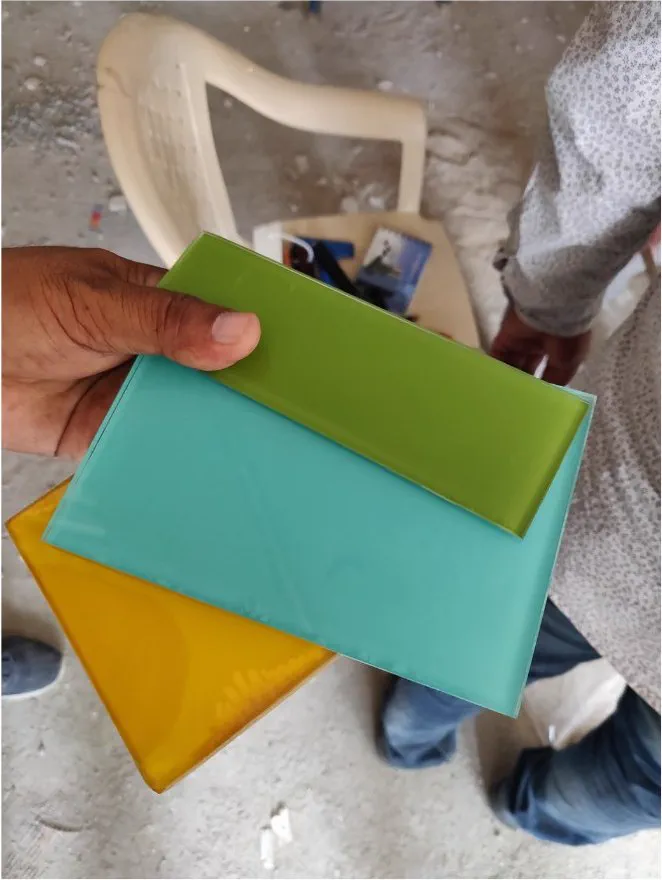

Glass chosen on site — olive, teal and amber, the colours that end up in the roof.

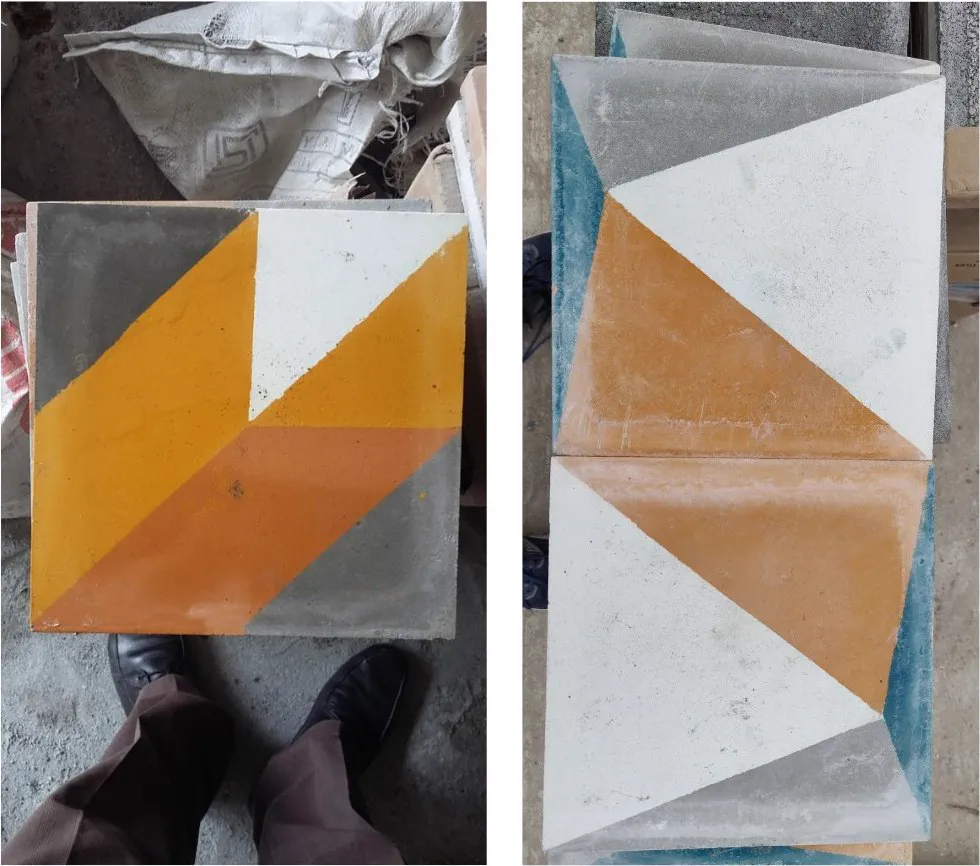

And the floor tiles, cut in triangles of grey, white and orange.

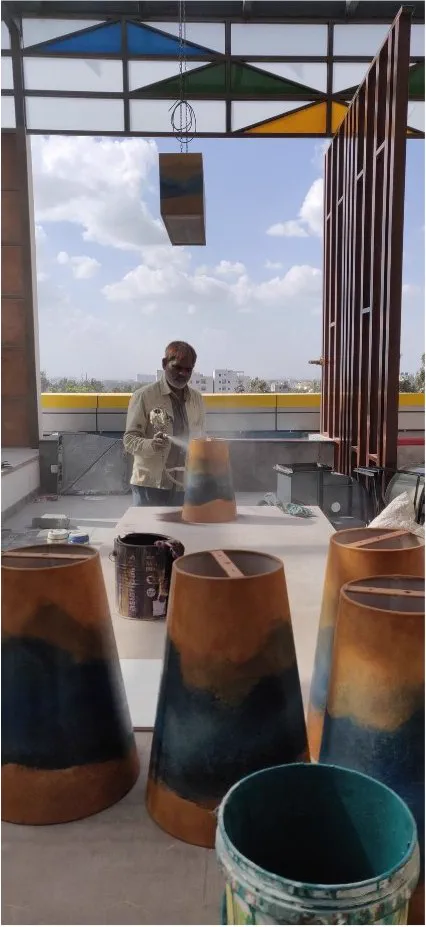

The cone shades sprayed by hand on the terrace, sunset colours worked wet into one another.

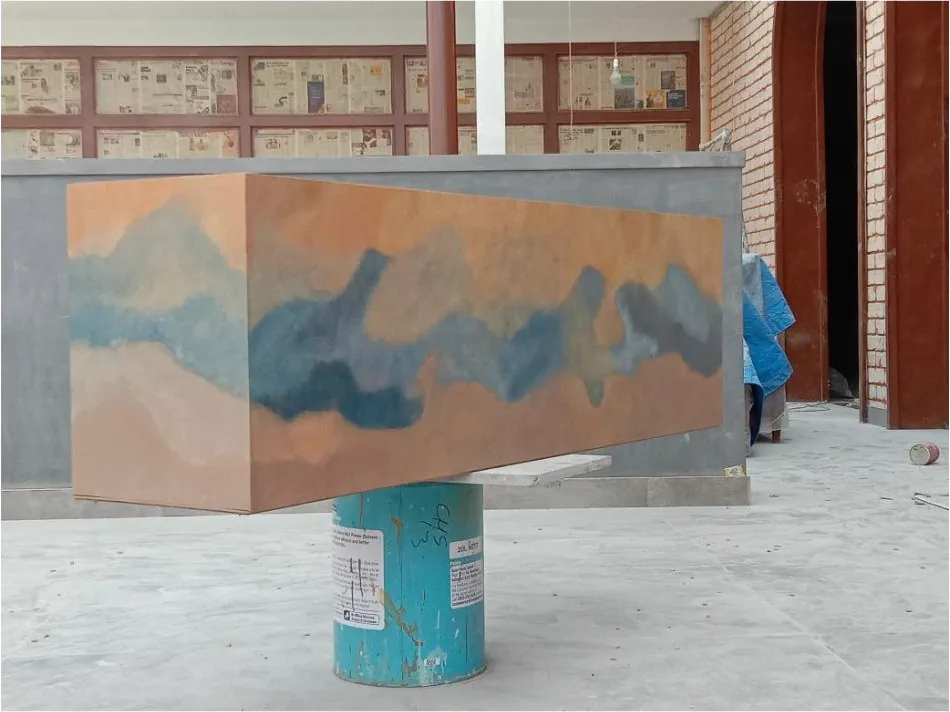

The same finish carried onto a panel, newspaper still masking the windows behind.

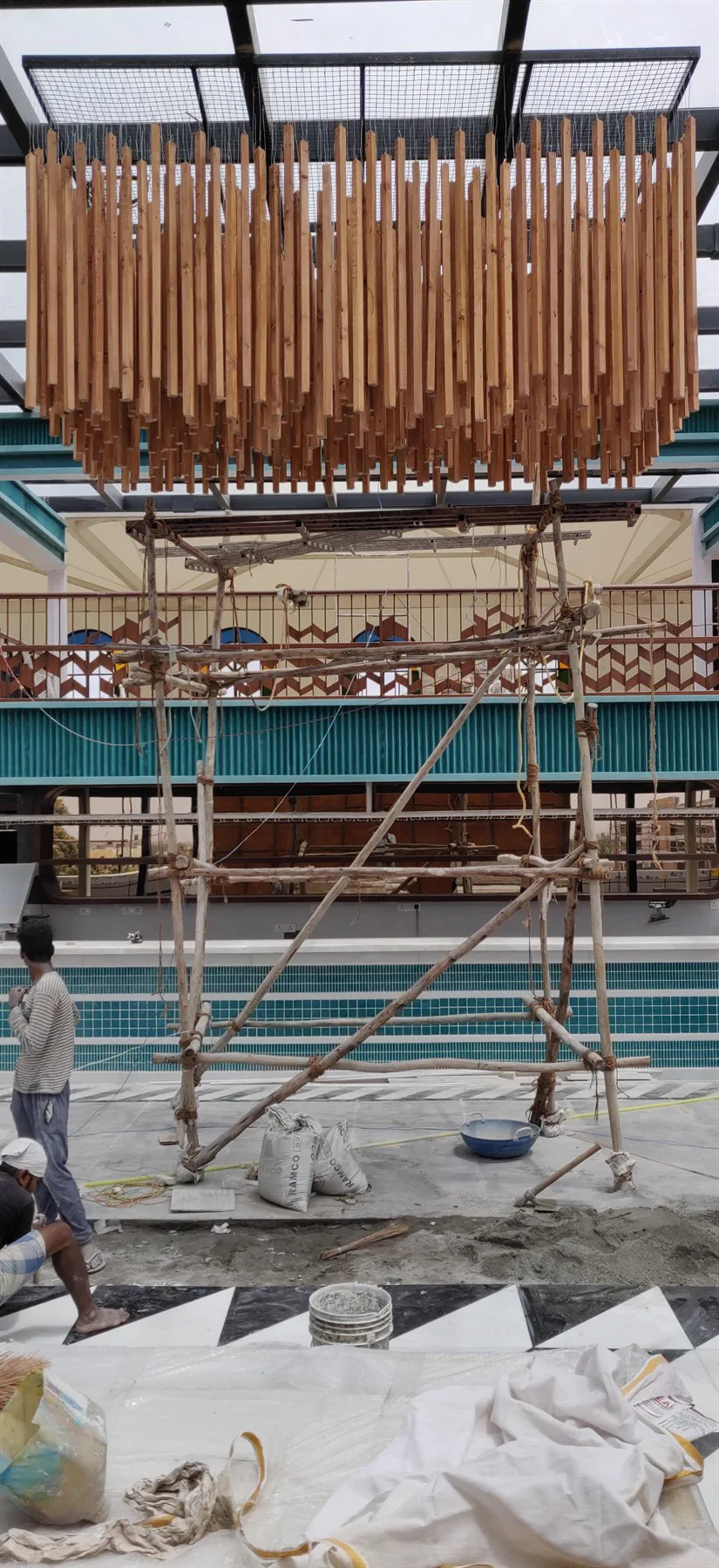

The bar going in under bamboo scaffolding, with the timber sculpture already hung above it.

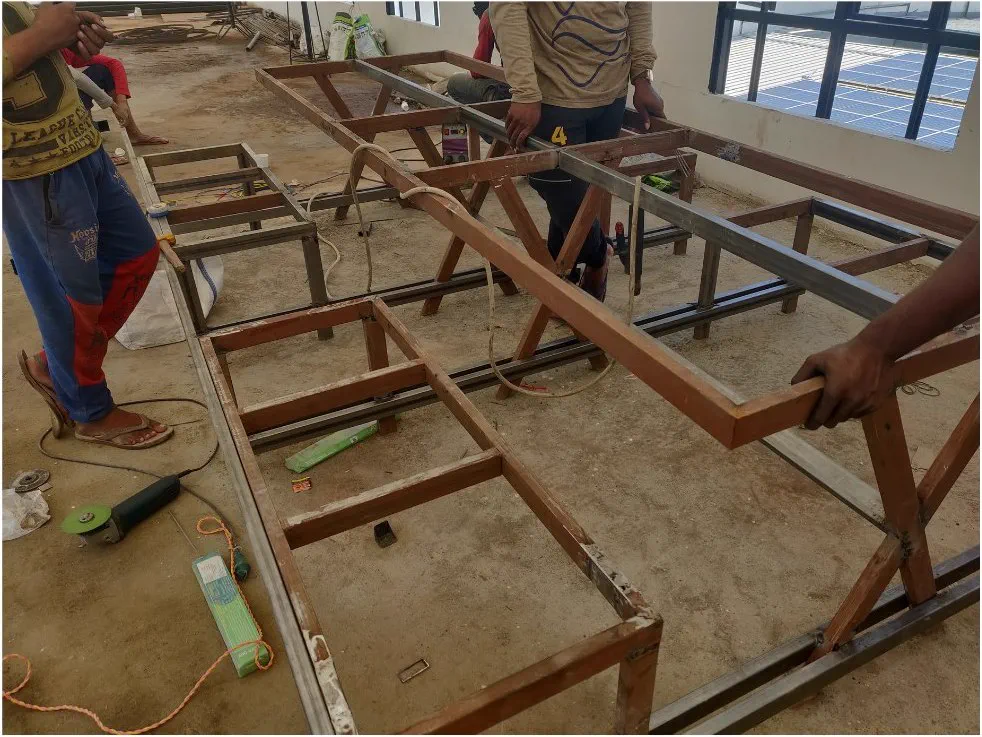

The terrace tables built on site, frame by frame, to that drawing.

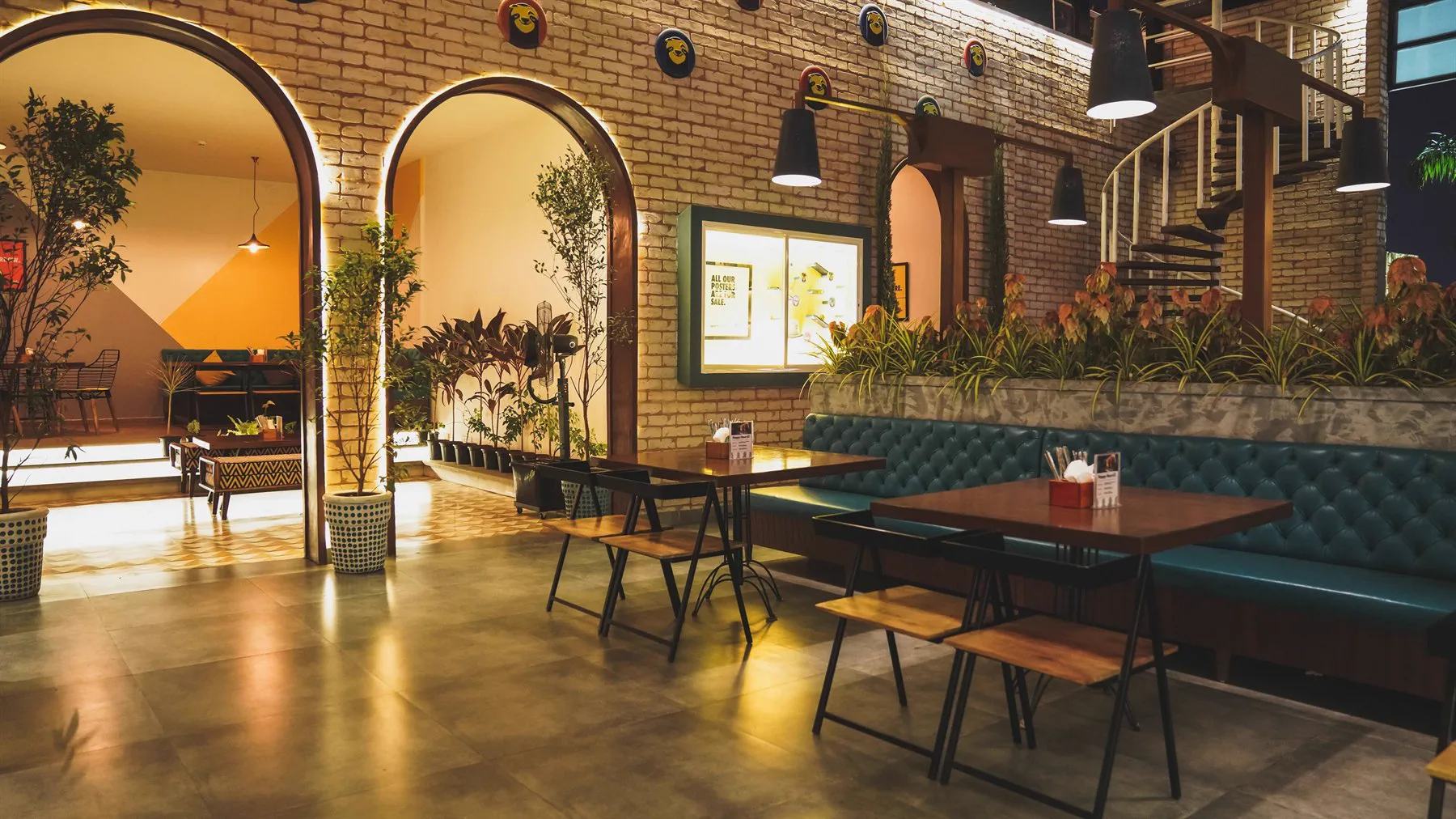

The room the arches make. Brick lit from inside the reveals, a teal chesterfield along the wall, and the spiral stair at the end.

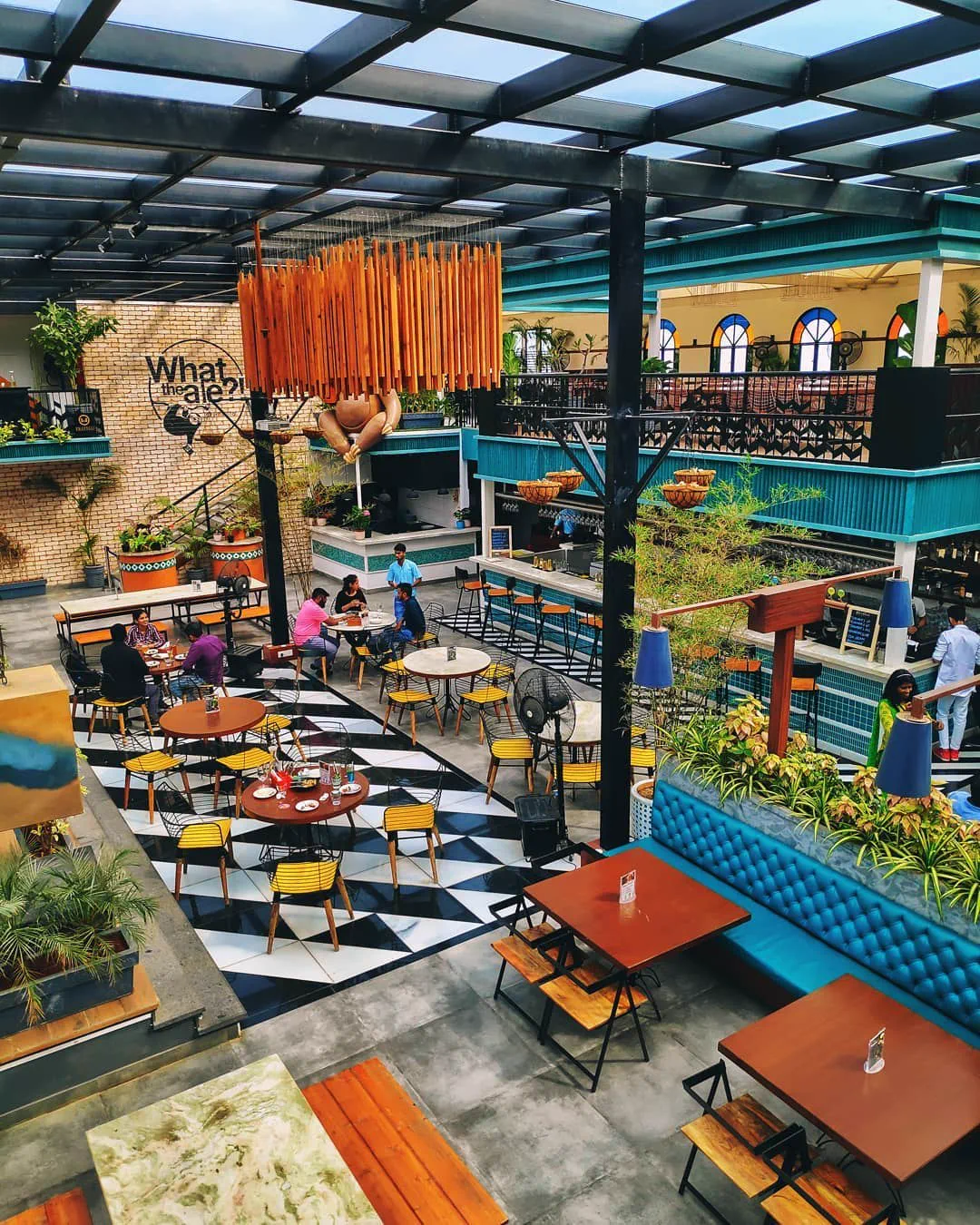

From the deck: the bar at the centre, the chequer floor, and the mezzanine's stained glass above it — the gallery view the plan was after.

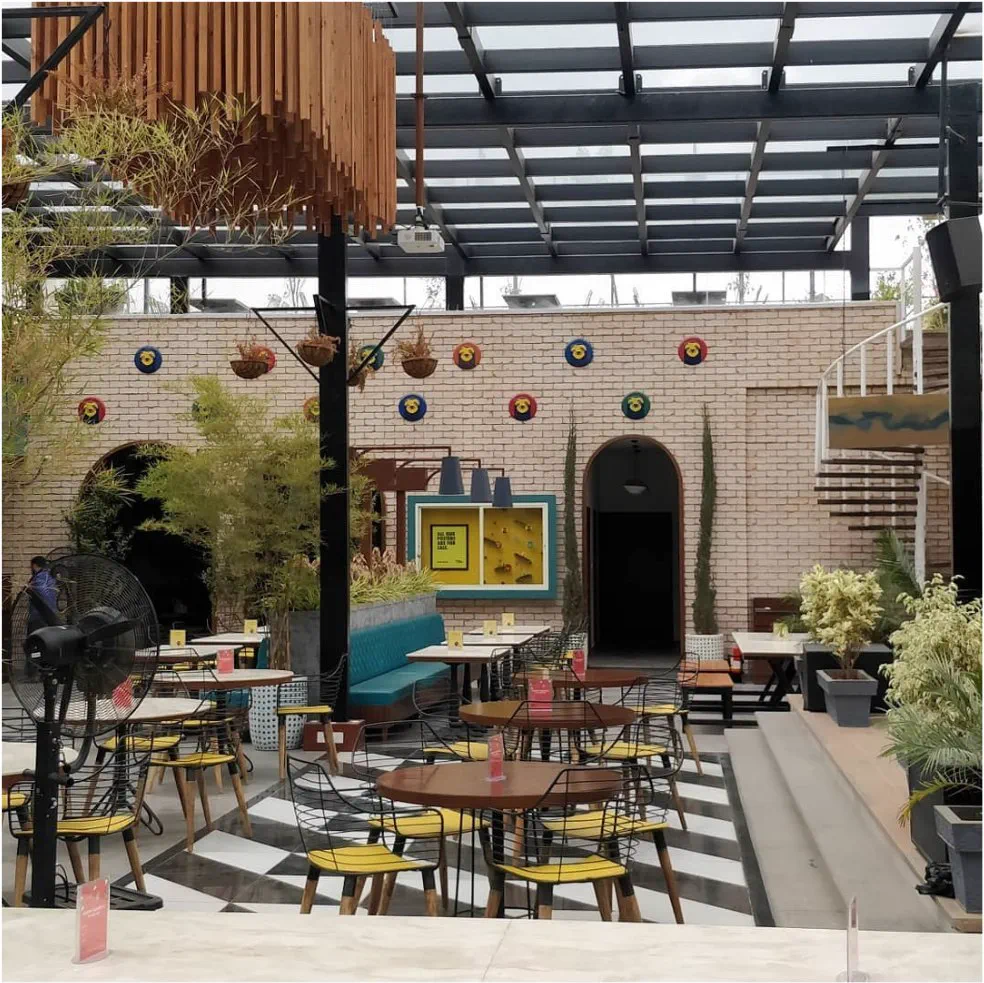

The open seating, with the spiral stair doing its second job as the most photographed thing on site.
The backdrop lit at dusk, exactly as the section drew it — a wall of light behind the band, planting hung across it.

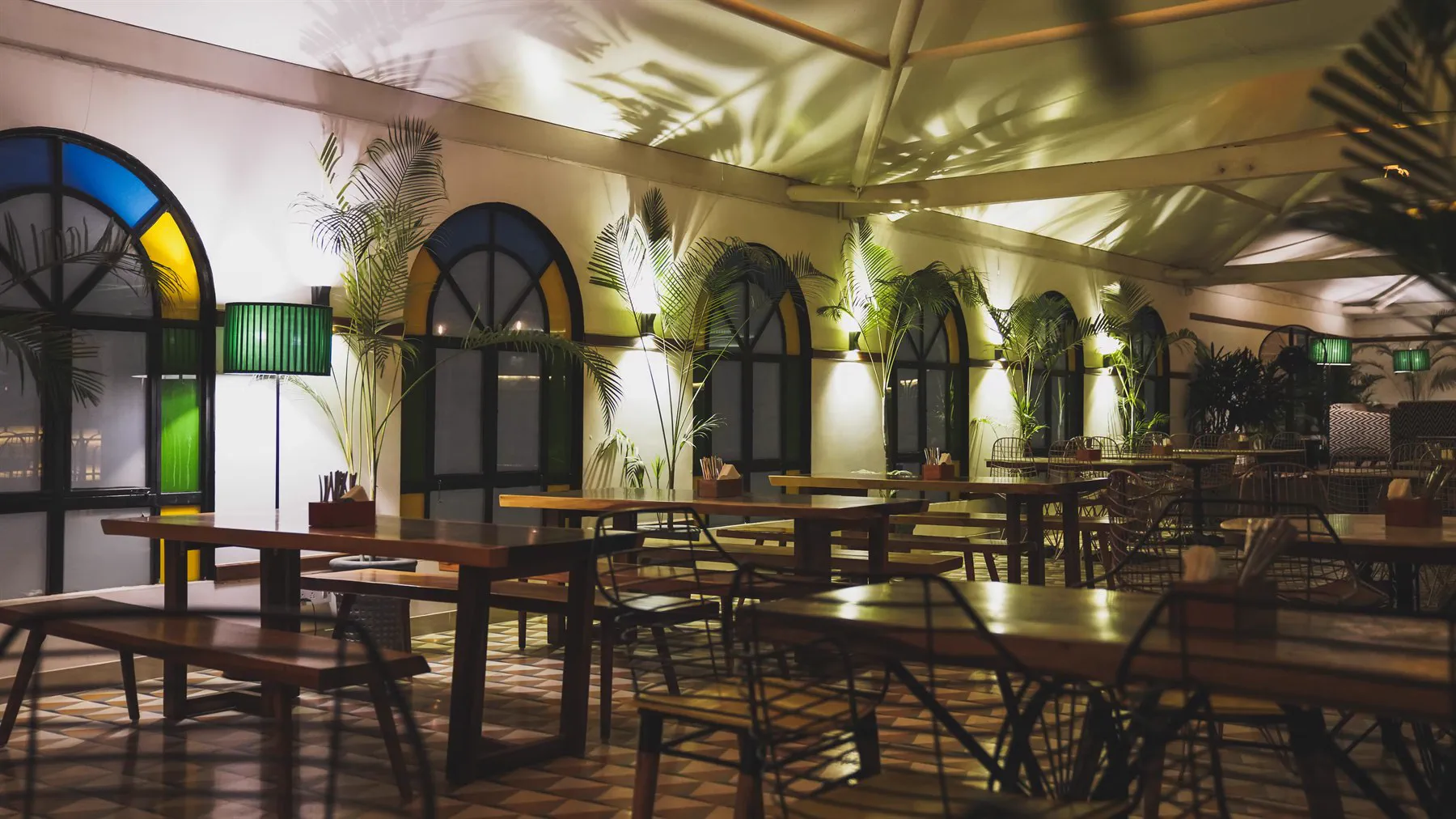

The mezzanine under one of the kept domes, arched windows glazed in blue and yellow, palms throwing shadows on the tent above.

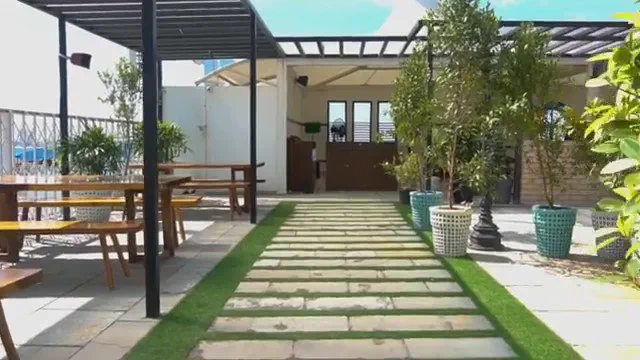

And the terrace, where those tables ended up.
